ePM-AI2
ePM-AI2 is a program that generates the job data
required for AOI, SPI, AXI inspections in SMT manufacturing processes.
ePM-AI2 is a program that generates the job data required for
AOI, SPI, AXI inspections in SMT manufacturing processes.
30 Years of Differentiated Expertise
What Makes ePM-AI2 Special?
Simple One-Click Component Coordinate
& Gerber Pattern Matching!
99% Accurate Fully Automated Matching
With the Fit CAD & Gerber feature,
ePM-AI2 automatically matches component coordinate data with Gerber patterns.
By using ePM-AI2,
you can reduce job creation time by approximately 99%
Coordinate-to-Gerber Matching Time
↓ Up to 99% Reduction
Before ePM - 10 min
After ePM - 1 sec
Create Board Arrays
Easily with One Click!

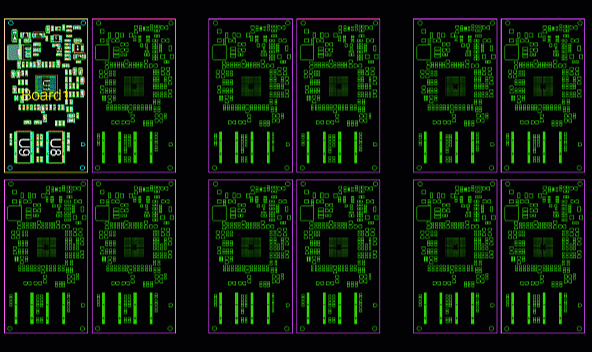

Automatic Recognition Array Generation
Automatically generate PCB board arrays with the Board Array function.
Board Array Creation Time
Before ePM - 20 min
After ePM - 3 sec
Create Component Pattern Information
Pattern Registration Reduced Errors
Automatically recognize and register component patterns with ease.
Component Pattern Creation Time
Before ePM - 30 min
After ePM - 10 sec
Highly Accurate Package Creation
Based on Standard Package Specifications!
Improved Quality Enhanced Reliability
Configure and modify package settings quickly and accurately.
Package Creation Time
Simple One-Click Component Coordinate & Gerber Pattern Matching!
With the Fit CAD & Gerber feature, ePM-AI2 automatically matches component coordinate data with Gerber patterns.
By using ePM-AI2 , you can reduce job creation time by approximately 99%
Reduce Time, Increase Accuracy
ePM-AI2 Automation Features

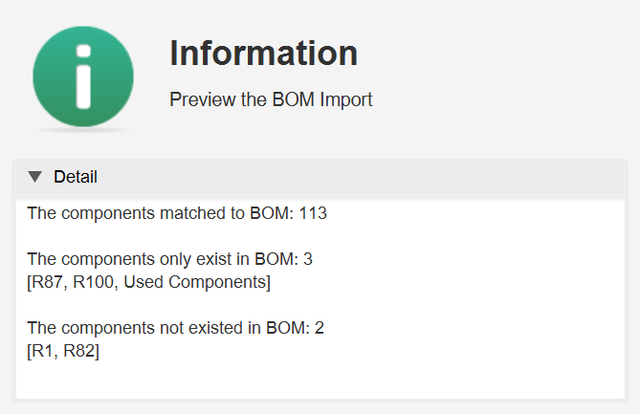

Complex and time-consuming BOM mapping?Make it easy and fast with BOM Wizard!
"The BOM Wizard enables anyone to perform BOM mapping quickly and effortlessly."
Save Time with
Mounter Equipment Format Compatibility!

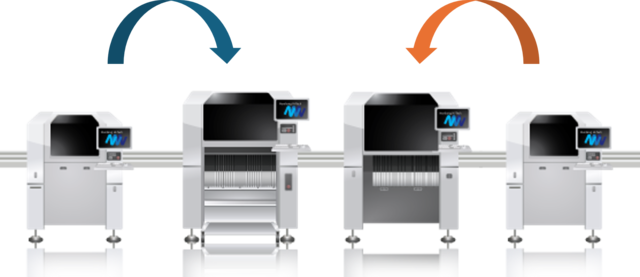

"Compatible with various mounter equipment formats,
enabling faster and more efficient production line operations."
Silkscreen Recognition?
All You Need Is Gerber Data!
"Recognize silkscreen information directly
from Gerber data without additional files."
Create Wafer Arrays Easily
with One Click!
"Automatically generate wafer arrays
with the Wafer Array function."
Create Board Arrays Easily
Board Array
Creation Time
Create Component Pattern Information Easily
Component Pattern
Highly Accurate Package Creation Based on
Standard Package Specifications!
Package
Complex and Time-Consuming BOM Mapping Made Easy BOM Wizard Feature!
The BOM Wizard enables anyone to perform BOM mapping quickly and effortlessly.
Save Time with Mounter Equipment Format Compatibility!
Compatible with various mounter equipment formats, enabling faster and more efficient production line operations.
Silkscreen Recognition? All You Need Is Gerber Data!
Recognize silkscreen information directly from Gerber data without additional files.

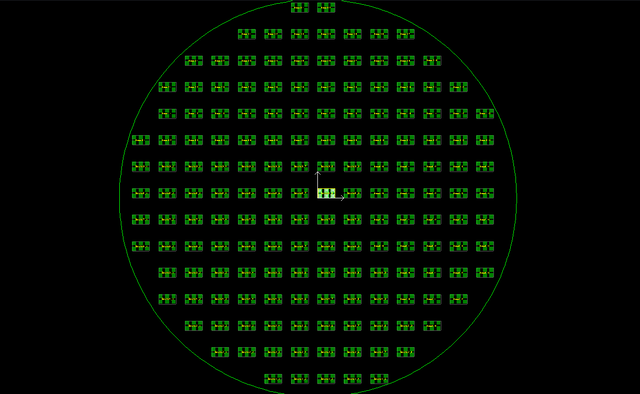

Create Wafer Arrays Easily with One Click!
Automatically generate wafer arrays with the Wafer Array function.
14-Day Free Trial & Installation Support
Experience ePM-AI2 firsthand with our demo version
before making a decision.
